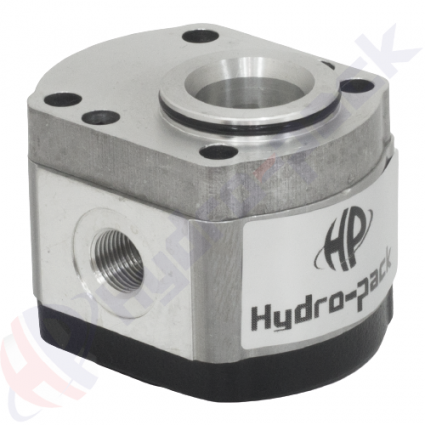

Group 20 Hydraulic Gear Pump, 14 cc/rev, clockwise , rear 52 mm , dihedral shaft , 20C14X110G
Group 20 Hydraulic Gear Pump
Group 20 Hydraulic Gear Pump, 14 cc/rev, clockwise , rear 52 mm , dihedral shaft , 20C14X110G
Group 20 Hydraulic Gear PumpSKU: H20C14X110G
Hydraulic pumps are mechanical devices that convert mechanical energy into hydraulic energy. They generate flow with enough power to overcome pressure induced by the load. X110G series pumps are rear section of double tandem pumps. They can be assembled with Group 20, X111G series.
Price:
€65.00
Fast order
Fill in the form with your name and phone and we will call you for confirmation.
More information about the product
20C14X110G Hydraulic Gear Pump
20C14X110G
Hydraulic pumps are mechanical devices that convert mechanical energy into hydraulic energy. They generate flow with enough power to overcome pressure induced by the load. Hydropack offer group 20 external gear pumps with different specifications. X110G series pumps are rear section of double tandem pumps. They can be assembled with Group 20, X111G series.
* Rotation is clockwise from shaft view
* Ports are BSP threaded ports
* Max. pressure refers to P1 pressure (Max. continuous pressure)
| Displacement | 14 |
| Rotation | clockwise |
| Flange Type | rear 52 mm |
| Shaft Type | dihedral shaft |
| Ports | BSP ports |
| Max. Pressure | 250 |
| Max. Speed | 3500 |
| Serie | 20C14X110G |
